Product Details:
|
| TYPE: | Piston Ring | MATERIAL: | PTFE+NBR |
|---|---|---|---|
| PACKING: | Neutral Packing , Customize , Or Customer's Brand | HIGH LIGHT: | Hydraulic Cylinder Piston Seals, Piston Seal Hydraulic |
| APPLIION: | Excavator Parts , Construction Machinery | NAME: | Piston Main Oil Seal |
| TEMPERATURE: | -30...+160°C | FEATURE: | Oil Resistance/Abrasion/Wether Resistance/ |
| Highlight: | ODM Hydraulic Piston Seal,OEM Hydraulic Piston Seal Excavator SPGA,35Mpa High Pressure Oil Seals |
||

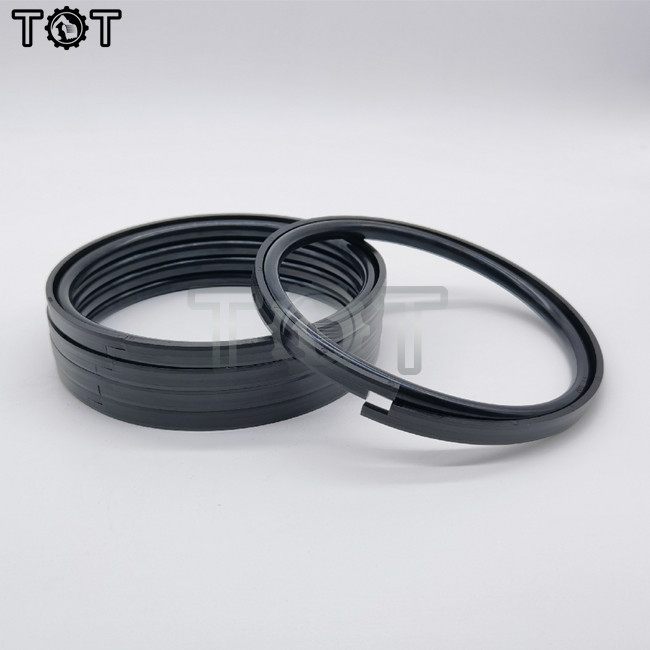

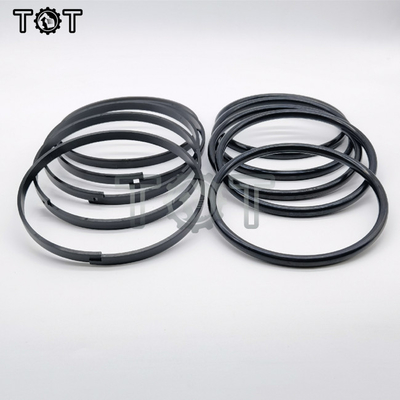

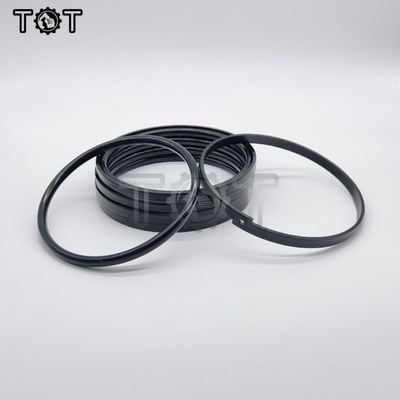

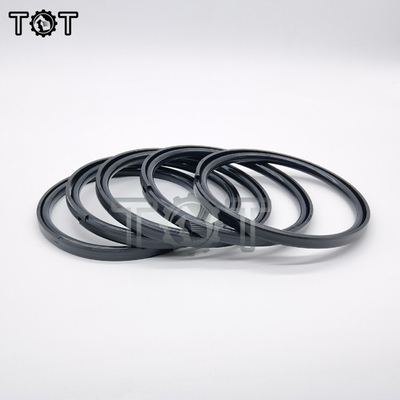

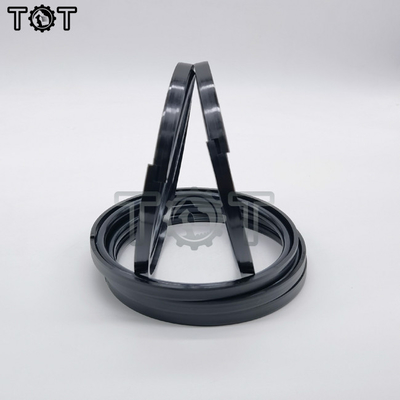

Piston Ring Hydraulic Piston Seal Excavator SPGA High Pressure Seals
Glyd Piston seal is composed of PTFE seal ring and O-ring. It is used for double acting sealing of the piston of hydraulic cylinder. Due to adopting special modified PTFE material, it can guarantee excellent low friction, wear resistance, extrusion resistance, high temperature resistance and Chemical resistance.
| Material | NBR+PTFE |
| Size | Standard Size , Customized |
| Sample | Free |
| OEM and ODM | Welcome |
| Delivery Time | 3-7 days after received the payment |
| Product Name | SPGA hydraulic cylinder piston seal |
| Port | Guangzhou , Shenzhen |
| Trade Term | EXW , FOB , CIF and so on |
| Packing | Neutral Packing , Customized , Or customer's brand |
| Appliion | Excavator parts , Construction machinery |
Description :
Material : PTFE+NBR+NY
Appliion Range :
(1) Pressure[Mpa]: 35
(2) Temperature[ºC]: -30...+160
(3) Sliding speed[m/s]: 1.5
(4) Medium: mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others.
Specifiion :
| Product Name | Specifiion(mm) | Product Name | Specifiion(mm) |
| SPGA | 70*55*7.3 | SPGA | 110*94*7.3 |
| SPGA | 75*60*7.3 | SPGA | 120*104*7.3 |
| SPGA | 80*65*7.3 | SPGA | 125*109*7.3 |
| SPGA | 85*70*7.3 | SPGA | 130*114*7.3 |
| SPGA | 90*75*7.3 | SPGA | 135*119*7.3 |
| SPGA | 95*80*7.3 | SPGA | 140*133*9.5 |
| SPGA | 100*85*7.3 | SPGA | 150*134*9.5 |
FAQ
Q1: Could you make it from other material?
A1: Yes, we can provide seal according to your requirements.
Q2: The website have not find mine model. What should I do?
A2: You can give us model number. We will respond quickly.
Q3: How can you guarantee the quality?
A3: 3 Months warranty. We promise to responsible for quality problem.
Q4: How to ship my order?
A4: Usually shipment by DHL, FedEx, UPS, TNT and EMS.
Q5: How can I pay?
A5: You can pay via T/T , WEST UNION or other payment terms we reach agreement.
Q6: Could you give me sample?
A6: Yes. Please inquiry us
