Product Details:
|
| Model Number: | 247-8974 | Appliion: | Arm Seal Kit |
|---|---|---|---|
| Material: | Rubber PTFE PU | Transport Package: | Carton Packing |
| Model NO: | Excavator Oil Seal | Feature: | High Efficiency, Long Life |
| Quality: | Good Quality | Temperature: | -35~+110° C |
| High Light: | 247-8974 Excavator Seal Kit,E320C D Excavator Seal Kit,E320C D Arm Hydraulic Cylinder Seal Kit |
||

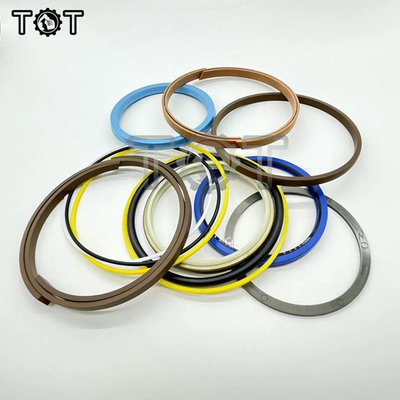

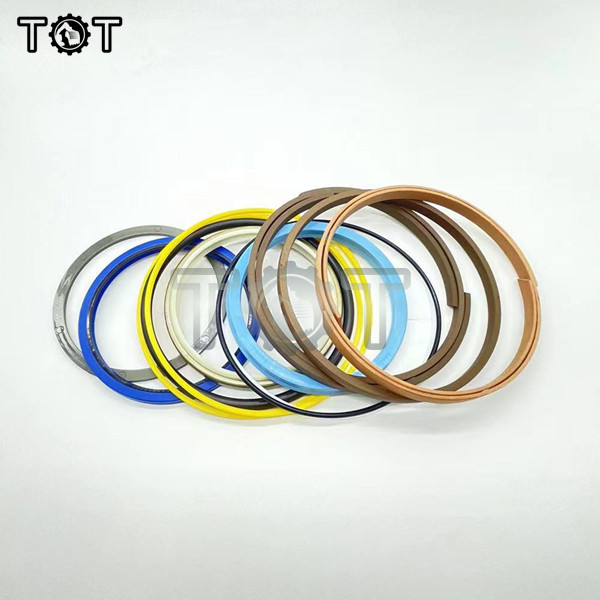

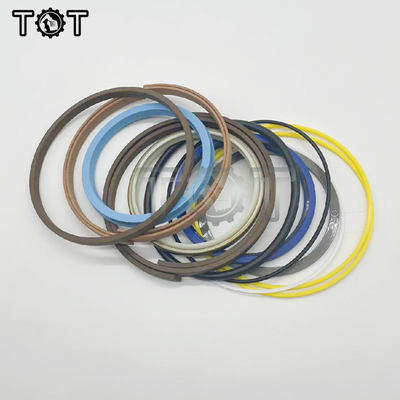

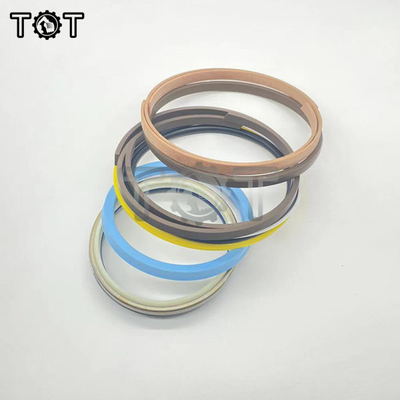

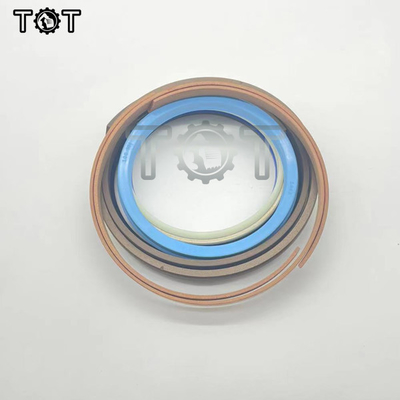

Excavator Seal Kit E320C/D 247-8974 Arm Hydraulic Cylinder Seal Kit
When oil leakage is found, we should first check whether there is anything wrong with the oil sealing area.
1. Phenomenon: Leakage occurs at low pressure but it stops sometimes at high pressure
Cause: surface finish of fitting groove is poor. Frequent occurrences particularly in the integral grooved housing
Countermeasure: lmprove the surface roughness approximately to 3.2-6.3μm Rz. Change the material to a lower hardness rubber
2. Phenomenon: Oil ring on the rod becomes loose and drops with each stroke.
Cause: Oil film is scraped out by lip of the dust seal
Countermeasure: Replace by a dust seal with smaller oil scraping amount.
3. Phenomenon: Leakage occurs at low temperatures and stops at high temperatures
Cause: 1. Excessive eccentricity; 2. inadequate seal material
Countermeasure: Change material to low temperature resistant rubber.
| Feature |
1) Available material : material for NBR,silicone,VITON(FKM)&Dow elastomers,Neoprene,HNBR,Natural rubber,SBR,IR,IIR(butyl rubber),ACM ect.NSF an KTW approved for material EPDM. 2) All manufacturing processes confirm to the ISO/TS16949,SGS,ROHS,REACH 3) Customer's design and specifiions are accepted. 4) Color and shape can be changed upon request. Available in various sizes and colors. 5) Our professional R&D team can provide you higher quality products with competitive price and all documents such as PPAP, CONTROL PLAN, PFMEA etc. 6) Have advanced CNC machine and technique to cut bonding washer molds by ourself. 7) High and low temperature resistance, oil resistance, anti-ozone and aging, wearable,great flexibility etc
|
| Packing |
Inner: PP bag(many defferent sizes) or brand package. Outer:Color box which full covered by yellow adhesive tape,closed,sturdy and you can find them easily. Our outer box size - weight and practical usepractical use: 1) 35.5*29.5*28.5 mm - 0.5kg -for smaller size and heavier products;such as framework oil seal 2) 52.5*33*29 mm - 0.8kg - for bigger size and lighter products ; such as HBY 3) many other size for special situation
|
Product Description
Contact Person: Mr. Dong
Tel: +86 13824486989 +86 13929532866
