6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump

I'm Online Chat Now

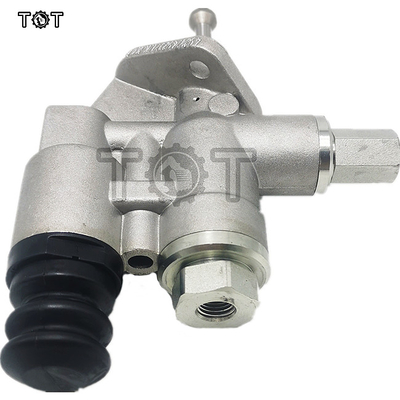

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump
6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump

Large Image :  6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump

Product Details:
Place of Origin: China
Brand Name: TOT
Model Number: 6D114
Payment & Shipping Terms:
Minimum Order Quantity: 1 pieces
Price: USD1-10/pcs
Packaging Details: standard export packing
Delivery Time: Within 3-7days after received payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 1000 Piece/Pieces per Month

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump

Description
Product Name: Hand Oil Pump Appliion: Excavator
Part Number: 6743-71-7132 Material: Aluminum
Warranty: 6 Months Machine Model: 6D114 6CT8.3
Quality: Aftermarket And Original Medium: Diesel Oil
Pressure: Hand
Highlight:

6743-71-7132 Excavator Hand Oil Pump

,

6D114 Excavator Hand Oil Pump

,

6D114 Excavator Fuel Lift Pump

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 0

Excavator 6D114 Fuel Transfer Pump 6743-71-7132 Fuel Lift Pump Hand oil Pump

Composition and structure of hand oil pump
The hand oil pump is composed of four parts: the pump body part, the handle part, the oil storage tank and the back seat part.
(1) Pump body part:
The pump body is the main part of the oil pump, high pressure working chamber, low pressure working chamber, two check valves, high pressure valve (safety valve), low pressure valve, unloading valve, two check valves, oil inlet and so on are above. The holes are connected organically.
(2) Two check valves are used to prevent pressure oil backflow.
The specifiions and functions of the two check valves are the same. Low pressure valves and high pressure valves are used for pressure control. The pressure is controlled at 1.5MPa and 63, respectively
MPa. The two steel balls at the oil inlet are check valves. After the work is completed, loosen the unloading valve and the pressure oil flow back to the oil storage pipe to complete the unloading work.
(3) Handle part:
Mainly by the pressure rod, the pressure of the composition. The pump body and plunger are connected by two pins. The hand power acts on the pressure rod and drives the plunger to reciproe and produce oil pressure.
(4) The back seat or the tank is equipped with oil injection and discharge holes. Release the screws for air discharge and intake. Please open the air valve when using.

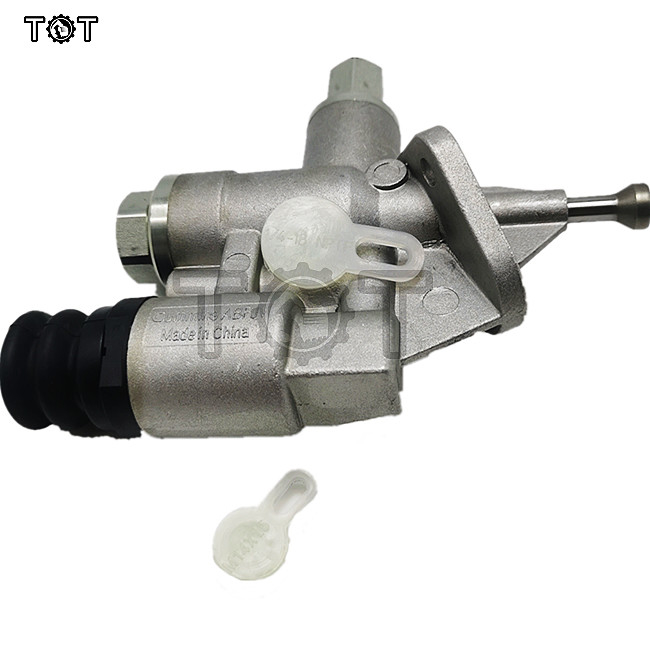

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 1

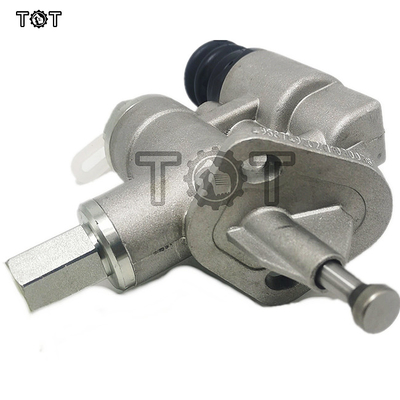

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 2

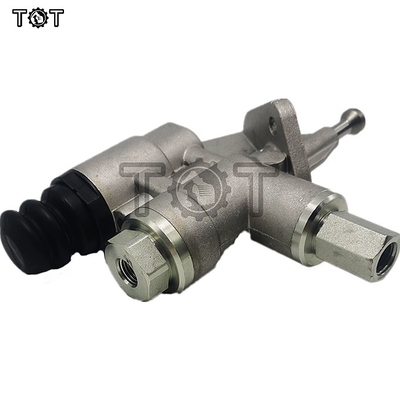

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 3

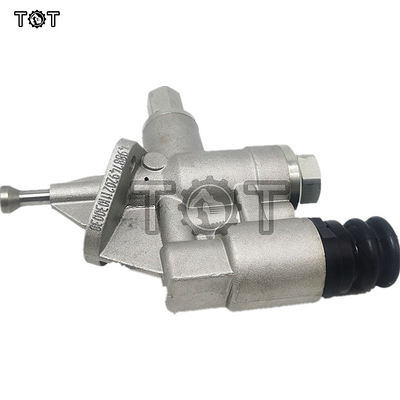

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 4

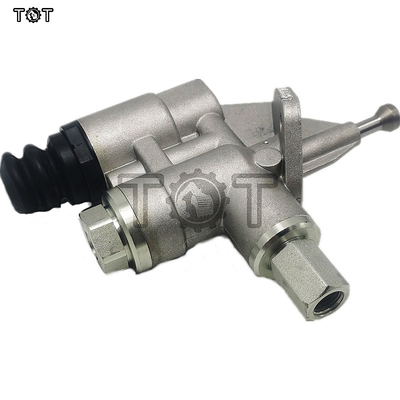

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 5

For more information please contact with our company.

Model number:



kOBELCO



SK30,SK40,SK50SR,SK55,SK60,SK80,SK100. SK120. SK135,SK200,SK220,SK250,SK300,SK320,SK330, SK350.SK480





SK30,SK40,SK50SR,SK55,SK60,SK80,SK100 and SK100 . and SK120 . SK135 , SK200 , SK220 , SK250 , SK300 , SK320 , SK330 , SK350.SK480 and SK480

KOMATSU PC20,PC30,PC40,PC50,PC60,PC100,PC120,PC128,PC130,PC150, PC200,PC210,PC220,PC300,PC350,PC360,PC400,PC450. PC650. PC800,PC850,PC1100,PC1250,PC1600,PC2000
SUMITOMO

LS1600,LS2600,LS2650,SL2800,LS3400,LS4300,LS5800

SH55,SH60,SH75,SH80,SH100,SH120,SH130,SH140,SH200,SH220,SH240,SH280,SH300, SH330,SH350,SH360,SH400,SH450,SH460,SH700,SH800



LS1600, LS2600, LS2650, SL2800, LS3400, LS4300, and LS5800.

SH55, SH60, SH75, SH80, SH100, SH120, SH130, SH140, SH200, SH220, SH240, SH280, SH300, SH330, SH350, SH360, SH400, SH450, SH460, SH700, SH800

KATO

HD140,HD308,HD450,HD510,HD1023,HD2045

HD250,HD307,HD400,HD512,HD550,HD700,HD800,HD820,HD900, HD1250,HD1430,HD1880

HITACHI

EX15,EX22,EX30,EX35,EX55,EX60,EX100, EX120,EX200,EX220,EX270,EX300,EX400,

ZX30,ZX35,ZX40,ZX50,ZX230,ZX270,ZX330, ZX300,ZX330,ZX350,ZX360,ZX400,ZX450,ZX470,ZX490,ZX550,ZX600,ZX850,ZX1100



EX15, EX22, EX30, EX35, EX55, EX60, EX100, EX120, EX200, EX220, EX270, EX300, EX400, EX50, EX50, EX50, EX50, EX50, EX50, EX50, EX50, EX50, EX50, EX60, EX50, EX500, EX50, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500, EX500

ZX30, ZX35, ZX40, ZX50, ZX230, ZX270, ZX330, ZX300, ZX330, ZX350, ZX360, ZX400, ZX450, ZX470, ZX490, ZX550, ZX600, ZX850, ZX100, ZX100

DAEWOO

DX50,DX55,DX60,DX75,DX150,DX180,DX225,DX260,DX300,DX340,DX380,DX520

DH80. DH55,DH150,DH160,DH200, DH220.DH225,DH258,DH300. DH330,DH360



DX50, DX55, DX60, DX75, DX150, DX180, DX225, DX260, DX300, DX340, DX380, DX520 and DX520

and DH80. DH55, DH150, DH160, DH200, DH220.DH225,DH258,DH300, and DH220.DH225,DH258. DH360 and DH330

HYUNDAI R55,R60,R80,R110,R130 ,R200, R210 ,R220 ,R290 ,R320 ,R375,R455,R500,R800,R1200
JCB JS70 ,JS75 ,JS110 ,JS130 ,JS135,JS160, JS180 ,JS200, JS220 ,
JS240, JS260 ,JS290,JS300 ,JS330,JS370

VOLVO

EC55,EC60,EC80,EC120,EC130,EC140EC150,EC200,EC210,EC240,EC290,EC360

EC460,EC700,EC950



EC55, EC60, EC80, EC120, EC130, EC140EC150, EC200, EC210, EC240, EC290, EC360 and EC360

EC460, EC700, and EC950


ERPILLAR
E70B,E110,E120B,E180,E200,E240,E301,E302,E303,E304,E305,E306,E307,E308
E320,E323,E324,E325,E329,E330,E349,E350



6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 6

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 7

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 8

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 9

6743-71-7132 Excavator Hand Oil Pump 6D114 Fuel Transfer Pump 10
