Product Details:
|
| Part Number: | LC30V00028F1 | Applicable Model: | SK350-8 |
|---|---|---|---|
| Working Tempereture: | -40--120℃(according To The Material) | Material: | Rubber |
| Feature: | Oil-resistant, Heat Resistant,Durable | Warranty: | 3 Months |
| Preservation Notice: | Closed,Dry And Avoid The Sun | Condition: | 100% New |
| High Light: | SK350 8 Main Control Valve Seal Kit,Control Valve Seal Kit LC30V00028F1,HITACHI Hydraulic Seal Kit |
||

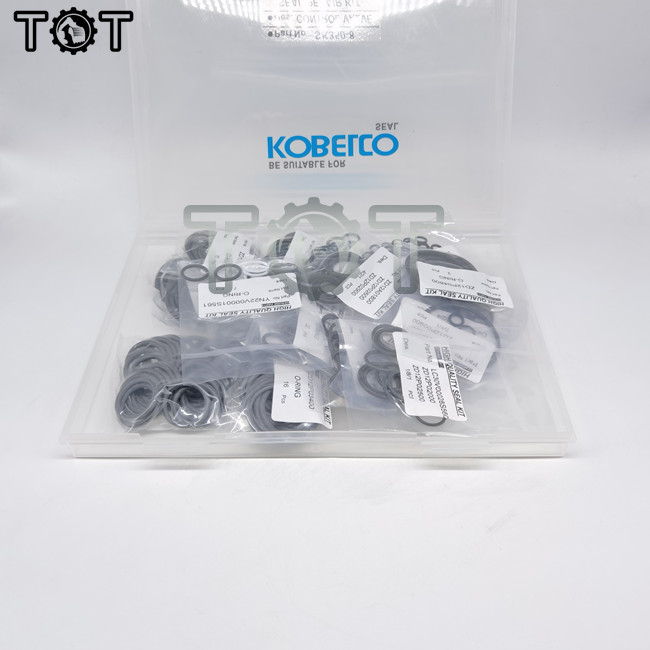

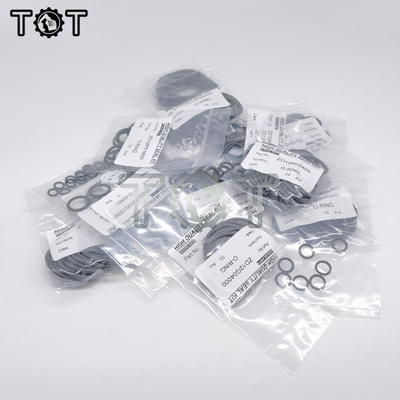

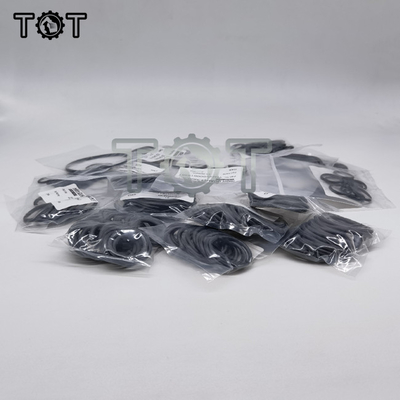

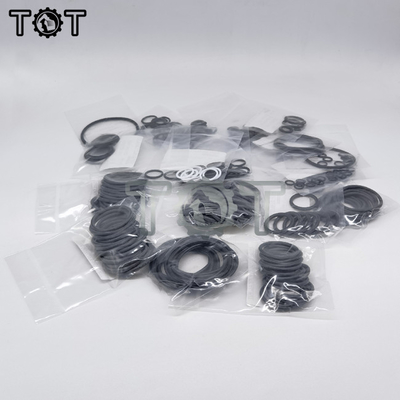

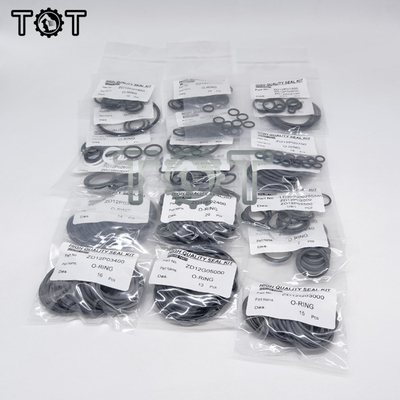

LC30V00028F1 HITACHI Hydraulic Seal Kit SK350-8 Main Control Valve Seal Kit
O-ring seal ring is called O-ring for short. It is a kind of rubber ring with circular section shape. O-ring is the most widely used seal in hydraulic and pneumatic systems. O-ring has good sealing performance, which can be used in both static seal and dynamic seal; Not only can it be used alone, but also it is a basic part of many combined sealing devices. It has a wide range of appliions. If the materials are properly selected, it can meet the requirements of various media and various motion conditions.
| Material: | PTFE,Rubber ,NBR |
| Feature: | Resistance to oil, Abrasion, Solvent |
| Temperature: | -30~+120℃ |
| Hardness: | 30 - 90 shores A |
| Advantage 1: | High and low pressure resistance |
| Advantage 2: | Weather resistance |
| Advantage 3: | High and low temperature resistance |
| Advantage 4: | Waterproof |
| Advantage 5: | Long time uses |
| Advantage 6: | Non-toxic |
| Appliion: | Construction equipment: Hammer breaker, excavator, etc. |
The installation quality of O-ring has an important impact on its sealing performance and service life. Leakage problems are often caused by poor installation. During installation, O-rings are not allowed to be scratched, installed incorrectly, or twisted. Before assembly, the sealing groove and sealing mating surface must be strictly cleaned; At the same time, apply grease to the surface to be passed during the assembly of O-ring. In order to prevent the O-ring from being cut or scratched by sharp edges such as sharp corners and threads during installation, a lead-in angle of 15O ~ 30o shall be reserved at the shaft end and hole end of the installation. When the O-ring needs to pass through the external thread, a special thin-wall metal guide sleeve shall be used to cover the external thread; If the O-ring needs to pass through the orifice, the orifice shall be inverted into the corresponding bevel shape to prevent the O-ring from being scratched. The bevel angle of the groove is generally a = 120o ~ 140o.
