Product Details:
|
| Model Number: | EC240 EC290 EC300 | Part Mumber: | VOE21600207 |
|---|---|---|---|
| Engine Model: | D7D / D7E / BF6M1013 | Quality: | High Quality |
| Material: | Cast Iron | Warranty: | 6Months |
| Weight: | 4.3~4.8KG | Packing: | As Your Requirement |
| Highlight: | D7D D7E Volvo Oil Pump Replacement,VOE21600207 volvo oil pump replacement,EC240 EC290 Excavator Engine Parts |
||

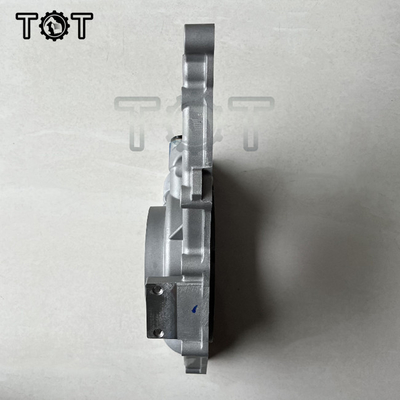

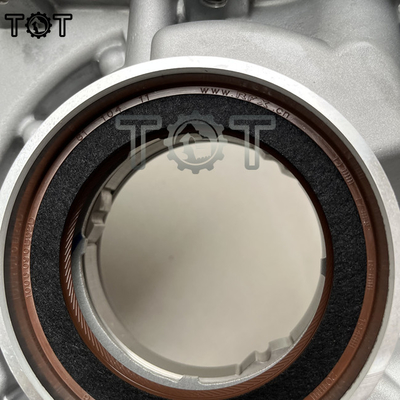

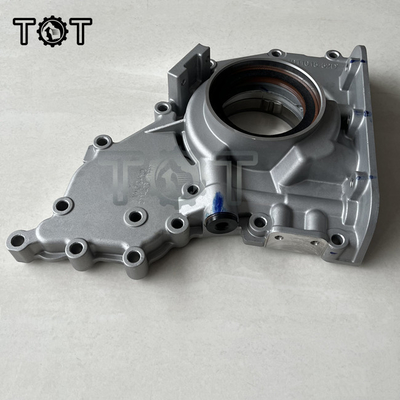

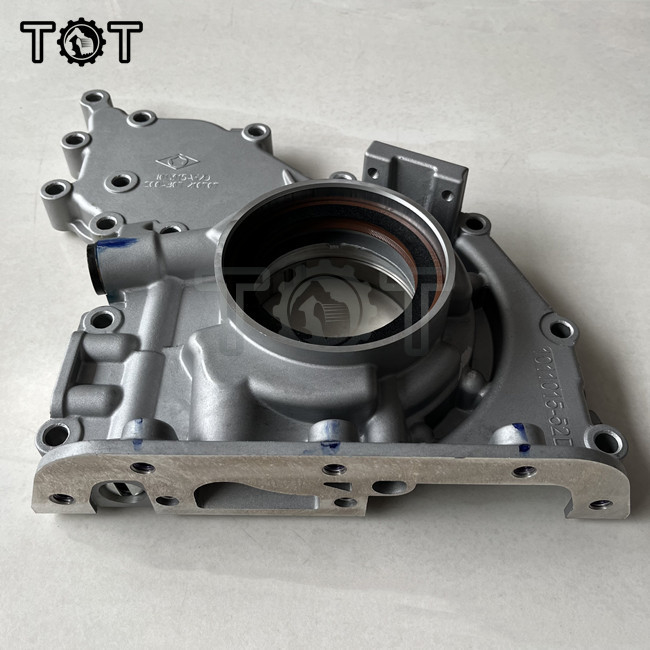

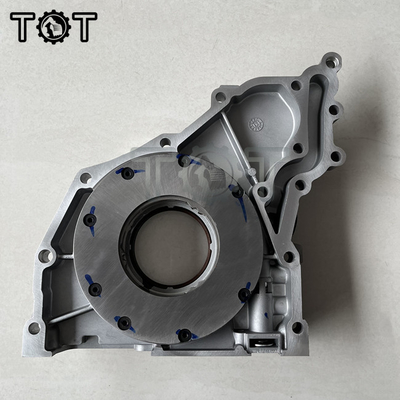

VOE21600207 Volvo D7D D7E Engine Oil Pump For EC240 EC290
Product Description
The oil pump is used to increase the oil pressure, ensure a certain amount of oil and force oil supply to each friction surface Gear and rotor oil pumps are widely used in internal combustion engines The gear oil pump has the advantages of simple structure, convenient processing, reliable operation, long service life and high pump oil pressure. The rotor pump has complex rotor shape and is mostly pressed by powder metallurgy. This oil pump has the same advantages as gear pump, but it has compact structure and small volume.
Number on alog scheme: 1
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | VOE21600207 | [1] | Oil pump housing | |
| 2. | VOE21486081 | [1] | Lip seal | |
| 3. | VOE20451738 | [8] | Screw | |
| 4. | VOE21679835 | [1] | Gasket | |
| 5. | VOE20412324 | [14] | Screw | |
| 6. | VOE20405603 | [1] | Spring pin | |
| 7. | VOE20485259 | [1] | Suction pipe | |
| 8. | VOE13949578 | [2] | Screw | |
| 9. | VOE20405888 | [1] | Gasket | |
| 10. | VOE20405792 | [2] | Screw | |
| 11. | VOE11700271 | [1] | Delivery valve | |
| 12. | VOE20405937 | [1] | Sleeve | |
| 13. | VOE20405896 | [1] | Compression spring | |
| 14. | VOE20405936 | [1] | Valve | |
| 15. | VOE20405904 | [1] | Ring | |
| 16. | VOE20405561 | [6] | Piston |
