Product Details:
|
| Part Number: | 8980416301 / 898192-9260 | Engine Model: | 4JJ1 |
|---|---|---|---|
| Compatible Models: | ZX135 ZX160 SH130 SY135 | Piston Diamter: | 95.4 Mm |
| Piston Ring Size: | 2.0HK+1.5+3.0 Mm | Quality: | OEM Quality |
| Supply Ability: | 1000PCS PER DAY | Warranty: | 1 Years |
| Highlight: | 8980416301 4JJ1 Isuzu Piston,Dia 95.4mm Isuzu Piston,8 98041 630 1 Excavator Engine Piston |
||

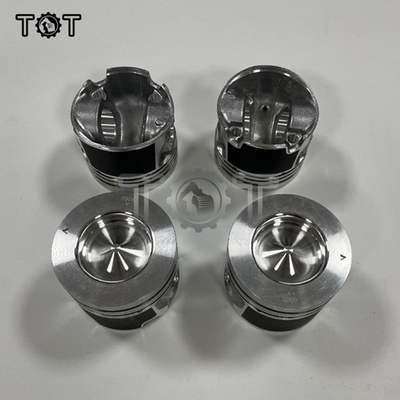

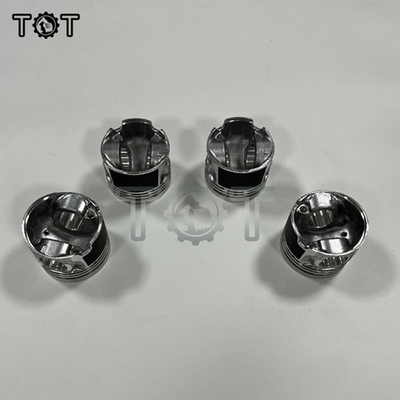

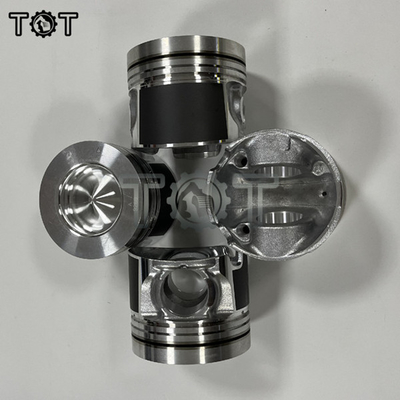

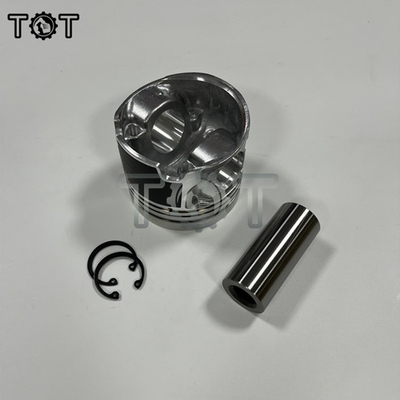

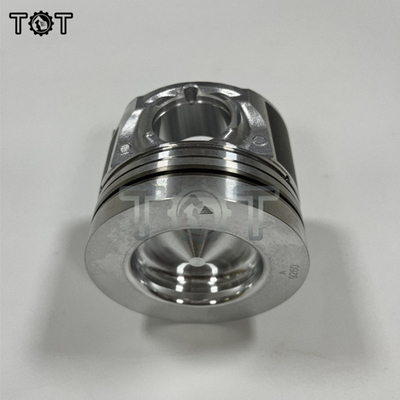

8980416301 Excavator Engine Isuzu 4JJ1XKS Piston 8-98041-630-1
Product Description
| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 001. | 8973888284 | [1] | CRANKSHAFT | |
| 010. | 8973879640 | [5] | METAL SET; CRANKSHAFT | GRADE=1 |
| 010. | 8973879650 | [5] | METAL SET; CRANKSHAFT | GRADE=2 |
| 010. | 8973879660 | [5] | METAL SET; CRANKSHAFT | GRADE=3 |
| 010. | 8973879670 | [5] | METAL SET; CRANKSHAFT | GRADE=4 |
| 010. | 8973879680 | [5] | METAL SET; CRANKSHAFT | GRADE=5 |
| 012(B). | 8980801690 | [1] | FLYWHEEL | |
| 018. | 8980388050 | [1] | PULLEY; CR/SHF | OD=147 |
| 021. | 5090002732 | [1] | BOLT; PULLEY FIX | M16X43 |
| 028. | 8973862321 | [1] | GEAR; CR/SHF | Z=44 |
| 035. | 9123336061 | [1] | GEAR; RING | Z=122 |
| 038. | 8941421561 | [1] | WASHER; FLYWHEEL | |
| 040. | 8944180500 | [8] | BOLT; FLYWHEEL | M13X45 |
| 042. | 8973837400 | [2] | WASHER; THRUST,CR/SHF | A |
| 042. | 8980407040 | [2] | WASHER; THRUST,CR/SHF | |
| 048. | 8942016410 | [1] | KEY; WOODRUFF,CR/SHF | |
| 059. | 5095031271 | [1] | WASHER; CR/SHF PULLEY | ID=16.5 OD=45 |
| 063. | 8980416301 | [4] | PISTON | GRADE=A |
| 063. | 8980416561 | [4] | PISTON | GRADE=B |
| 063. | 8980416591 | [4] | PISTON | GRADE=C |
| 063. | 8981929260 | [4] | PISTON | GRADE=A |
| 063. | 8981929270 | [4] | PISTON | GRADE=B |
| 063. | 8981929280 | [4] | PISTON | GRADE=C |
| 068. | 8980572220 | [4] | RING SET; PISTON,STANDARD | |
| 073. | 8973582340 | [4] | METAL SET; CONN ROD,STANDARD | |
| 083. | 8980151931 | [4] | PIN; PISTON | |
| 084. | 8973889212 | [4] | ROD ASM; CONN | |
| 085. | 8973830660 | [4] | BUSHING; CONNROD | |
| 086. | 8980485380 | [8] | BOLT; CONNROD | M11X44.5 |
| 087. | 9081605080 | [8] | PIN; CONNROD BIG END | OD=5 L=8 |
| 126. | 8944606870 | [8] | RING; SNAP,PISTON PIN | |
| 172. | 8973123370 | [1] | ROTOR; CRANK SENSOR | |
| 172. | 8981636930 | [1] | ROTOR; CRANK SENSOR | |
| 203. | 9081605080 | [1] | PIN; ROTOR | OD=5 L=8 |
| 204. | 8972133330 | [3] | BOLT; ROTOR | C |
Number on alog scheme: 063
Packaging & Shipping
FAQ
Q1: Could you make it from other material?
A1: Yes, we can provide seal according to your requirements.
Q2: The website have not find mine model. What should I do?
A2: You can give us model number. We will respond quickly.
Q3: How can you guarantee the quality?
A3: One year's warranty. We promise to responsible for quality problem.
Q4: How to ship my order?
A4: Usually shipment by DHL, FedEx, UPS, TNT and EMS.
Q5: How can I pay?
A5: You can pay via T/T , WEST UNION or other payment terms we reach agreement.
Q6: Could you give me sample?
A6: Yes. Please inquiry us.
